NK Conductive Fabric is manufactured by Ni and Cu plating on polyester fabrics. The base
layer is the highly conductive Cu, with or without an outer layer of Ni for corrosion resistance.
Ni/cu/Ni coated polyester fabrics offer excellent electric conductivity, SE and anticorrosion for a diverse
range of requirements.
|
| Application |
Special Feature |
- ESD sheet
- Cable shield
- Radar Reflection
- Tempest room
- Shield screen, gasket, tape, shield window |
- Finger mark, Burr prevention |
|
| |
| Product Code |
DE1-280C-NK |
DE2-280C-NK |
| Structure |
| Material structure |
Layer no.1 |
Nickel |
Nickel |
| Layer no.2 |
Copper |
Copper |
| Layer no.3 |
Nickel |
Nickel |
| Layer no.4 |
Polyester woven fabric |
Polyester woven fabric |
| Electrically Properties |
| Volume Resistivity |
O,sq.inch |
≤ 0.08 |
≤ 0.08 |

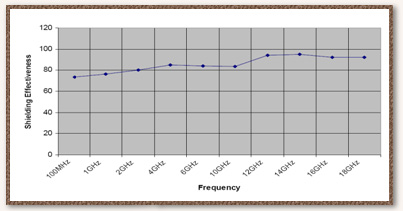

| Shielding Effectiveness |
dB |
88-102(40MHz - 1GHz) |
88-102(40MHz - 1GHz) |
| Physical Properties |
| Type |
|
Taffeta |
Ripstop |
| Plating |
|
Ni+Cu+Ni |
Ni+Cu+Ni |
| Material base |
|
Polyester |
Polyester |
| Thickness |
mm |
0.11 +/- 10% |
0.12 +/- 10% |
| Width |
mm |
1100 |
1100 |
| Length |
M/roll |
150 |
150 |
| Yarn count |
|
274T |
274T |
| Density (Warp x Weft) |
inch x inch |
186 x 88 |
186 x 88 |
| Thread (Warp x Weft) |
36F |
50D x 75D |
50D x 75D |
| Service temperature |
°C |
210°C |
210°C |
| Flame Resistance |
UL94 |
Listed VTM-1 and VTM-0 |
Listed VTM-1 and VTM-0 |
| Mechanical Properties |
|  Elongation      (%) |
warp |
27.6 ± 10 |
27.6 ± 10 |
| weft |
36.8 ± 10 |
36.8 ± 10 |
|
|
|
|
|
|
