COOL Thermal Spreadsheet
COOL Thermal Spreadsheet is designated to provide a preferential heat transfer path between heat generating components like Integrated Circuit Chip and heat spreaders as aluminum heat sink.
Features:
• Good softness and conformability even to non-flat IC surfaces and heat spreading blocks.
• No siloxane gas/ oil bleeding which often causes electric connection failure can be generated.
• High pressure relaxation reduces pressure to electric components.
• Good wetting performance for better thermal conductivity
• Excellent flame retardant, UL94 V-0 equivalent material.
• Good electrical insulation properties.
• Slight tack allows easy pre-assembly.
Application:
• Heat management of electronic devices and gap filling parts in electronic components.
• HD TV Address IC Chip and Scan Module Board
• General Gap Filling in Electronic Device
• IC Packaging Heat Conduction
• COF Chip Heat Conduction
• Heat Sink Bonding
• LED Board TIM
Mechanical fastening such as clamp, bracket, screw and additional tapes and adhesives bonding can be used in parallel with this pad.
Product code 035N 050N 050C-FR 060-1Z 070C-FR 080N 100N 100C-FR 130N

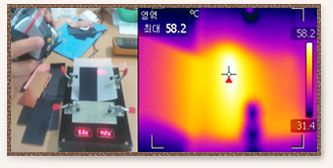

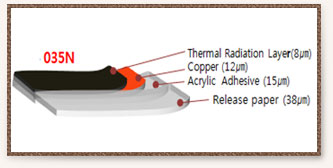

Thermal Radiation Black Color Visual 8µm 10µm 10µm 10µm 10µm 10µm 10µm 10µm 10µm
Base Copper Layer     12µm 18µm 18µm 35µm 35µm 35µm 70µm 70µm x
Base Alumium Layer     x x x x x x x x 60µm
Adhesive Layer     15µm 22µm 25µm 15µm 25µm 32µm 20µm 25µm 50µm
Release Liner 38µm pet Liner Application x       x     x
50µm pet Liner x x       x     x
75µm pet Liner   x       x     x
100µm pet Liner   x       x     x
130µm paper Liner x Applicatiom Applicatiom Application Application Application Application Application Application
Thickness   ASTM D 374 35µm 50µm 53µm 60µm 70µm 80µm 100µm 105µm 130µm
Hardness   JIS-K5600-5-4
1.0mm/s, distance
40mm, 5 times 		>7H >7H >7H >7H >7H >7H >7H >7H >7H
180°C Peel Strength (g/25mm)   KSA 1107 Min 1,000 Min 1,200 Min 900 Min 1,000 Min 900 Min 1,200 Min 1,200 Min 900 Min 1,500
Elongation   ASTM D 882 0.80% 0.80% 0.80% 0.80% 0.80% 0.80% 0.80% 0.80% 0.90%
Insulation Resistance
(Coating Side/10sec) 		    >1011  >1011  >1011  >1011  >1011  >1011  >1011  >1011  >1011
Roll Size     500mm* 100M 500mm* 100M 500mm* 100M 500mm* 100M 500mm* 100M 500mm* 100M 500mm* 100M 500mm* 100M 500mm* 100M
  1000mm* 50M 1000mm* 50M 1000mm* 50M 1000mm* 50M 1000mm* 50M 1000mm* 50M 1000mm* 50M 1000mm* 50M 1000mm* 50M
Temperature Range
(Continue Use) 		  °C   -20°C~ 120°C  -20°C~ 120°C  -20°C~ 120°C  -20°C~ 120°C  -20°C~ 120°C  -20°C~ 120°C  -20°C~ 120°C  -20°C~ 120°C  -20°C~ 120°C
Thermal Conductivity (W/wk)
W/mk 		Horizontal   471 471 471 471 471 471 471 471 315
Vertical   114 114 114 114 114 114 114 114 85
Constant Temperture & Humidity Reliability 85°C / 85°C 72Hr YES YES YES YES YES YES YES YES YES
Thermal shock  -40°C~ 85°C
30 min 100 cycle 		YES YES YES YES YES YES YES YES YES
Heat-Restance 100°C  72 Hr YES YES YES YES YES YES YES YES YES
Flammability Resistance   UL94     V0   V0     V0
RoHS & Halogen Free     YES YES YES YES YES YES YES YES YES
